Weight 5 lbsDimensions42 × 7 × 9 in
Range 30ft
Fuel Capacity 1 gallon (3.8l)
Firing Time 100 seconds

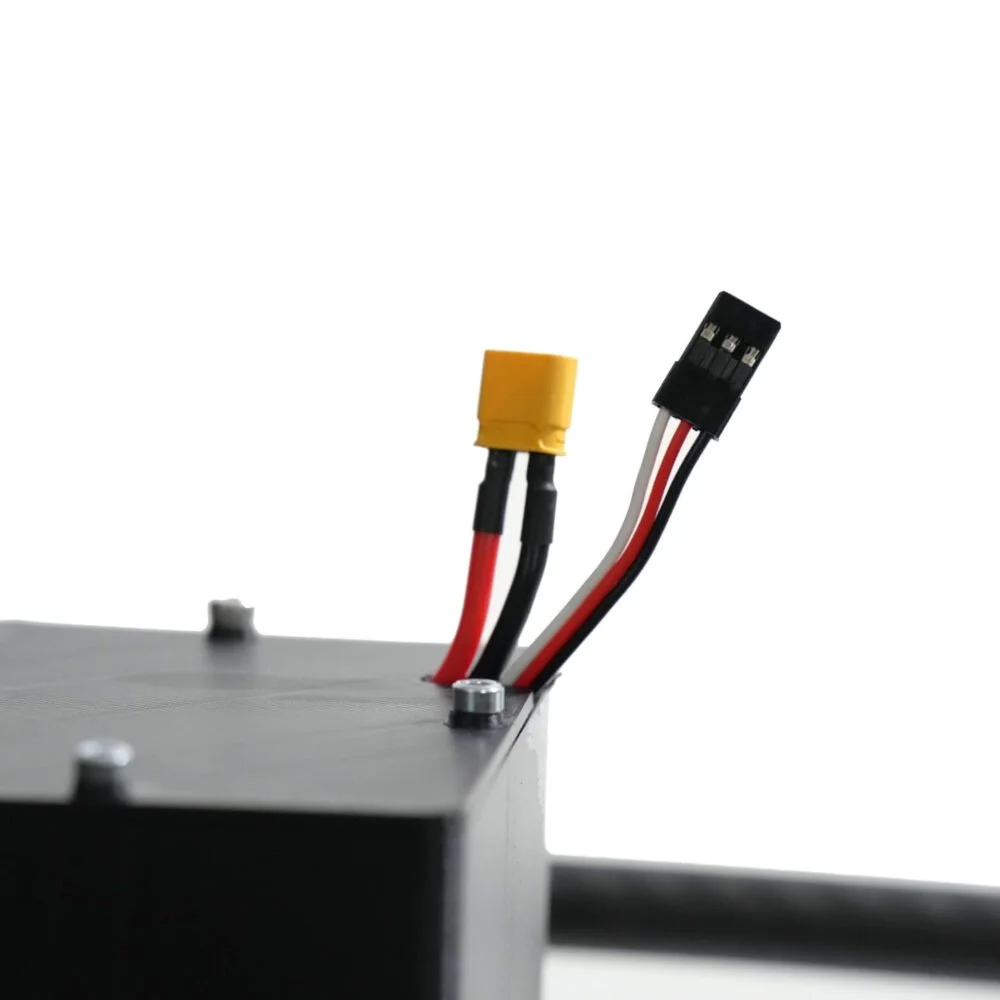

Operating Voltage 9v-13v (XT30 connection)
Firing System Control (1) PWM signal (Servo)
Igniter Plasma arc ignition system
Material Ultralite 3K carbon fiber
Fuel Delivery High-efficiency performance fuel pumpItem description
-

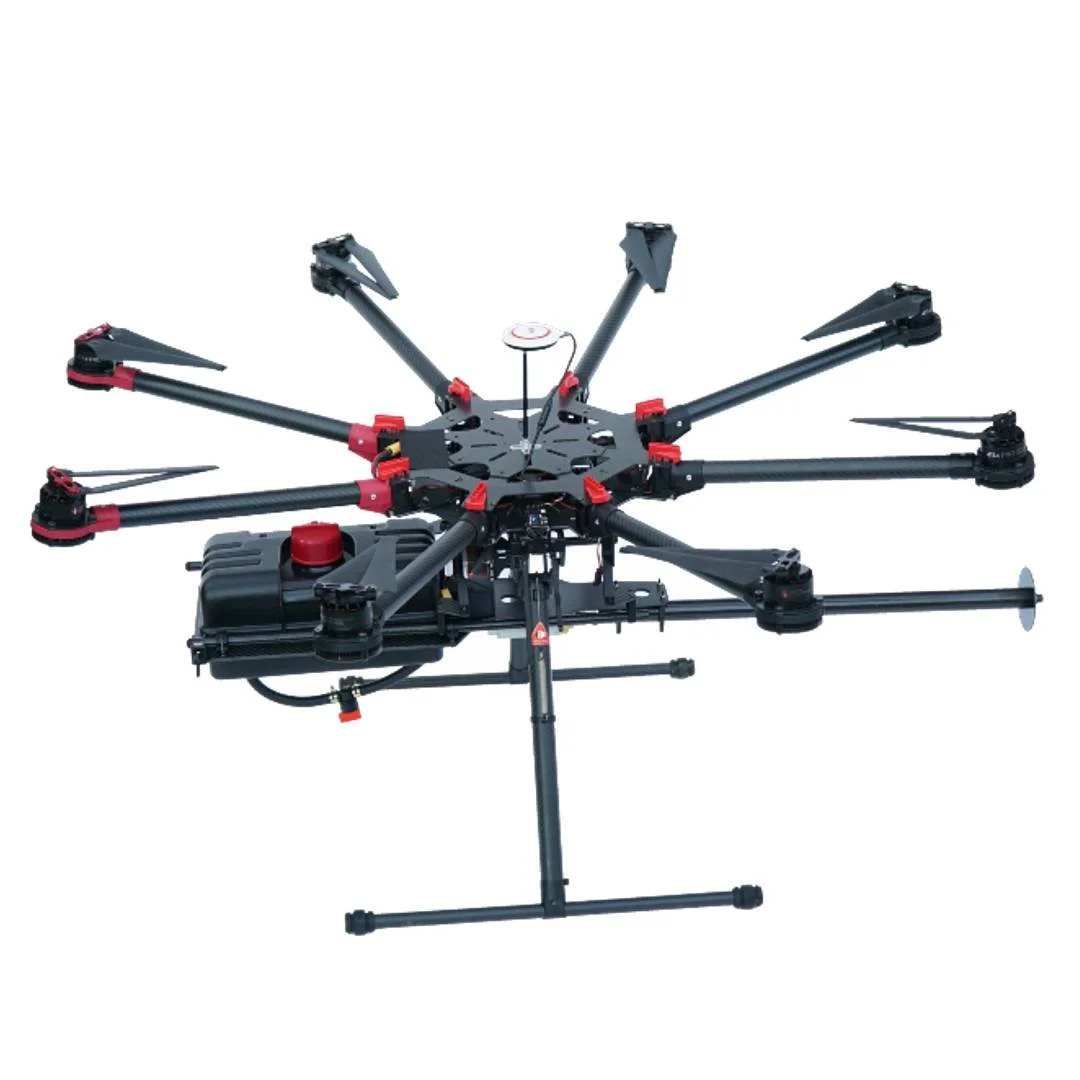

The TF-19 is designed to be broadly adaptable — it mounts to most heavy-lift cinema and industrial drone platforms with minimal user fabrication. Recommended platforms include:
DJI S1000
DJI Matrice 600 / M600 Pro
Most other heavy-lift drones designed to carry gimbal or cinema-camera payloads

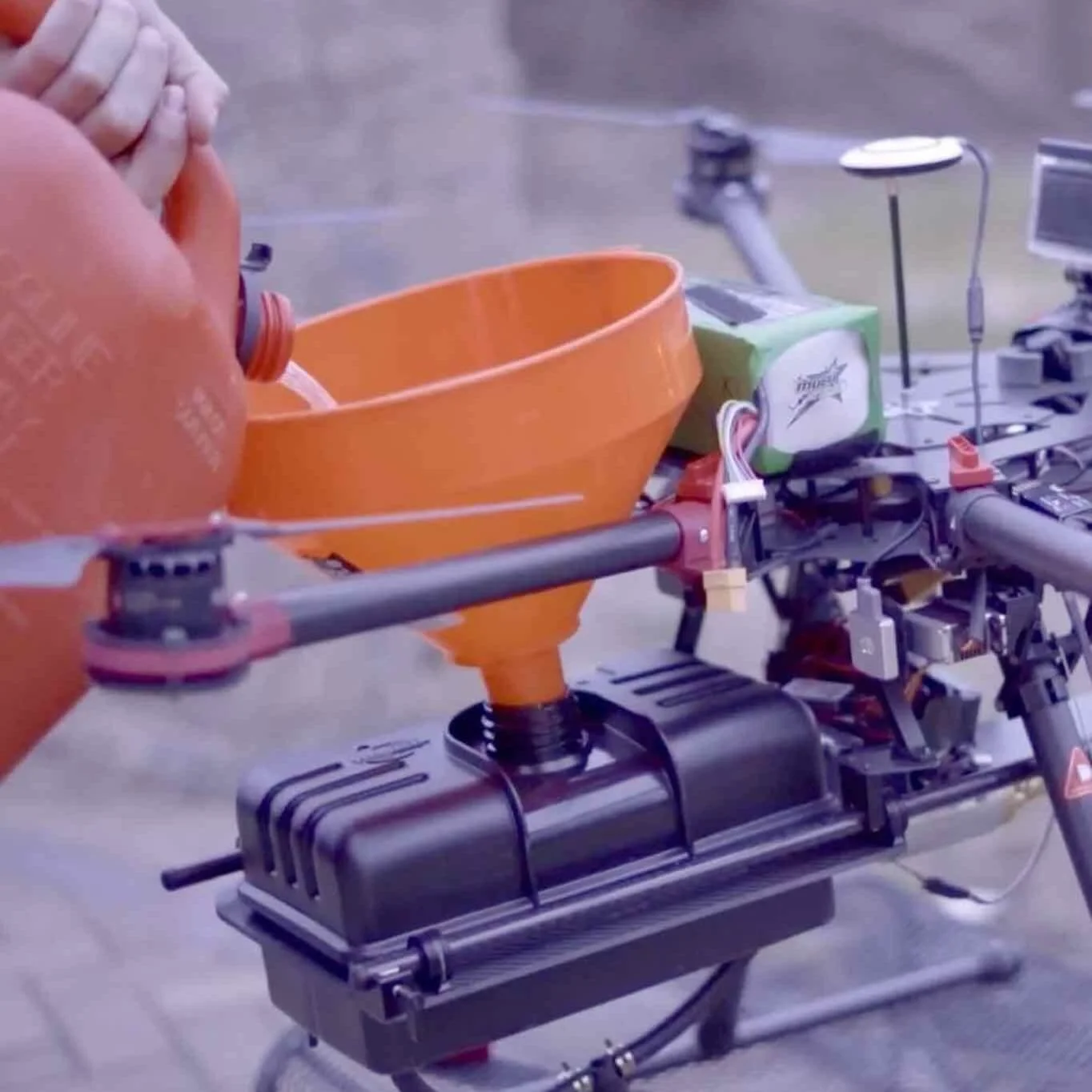

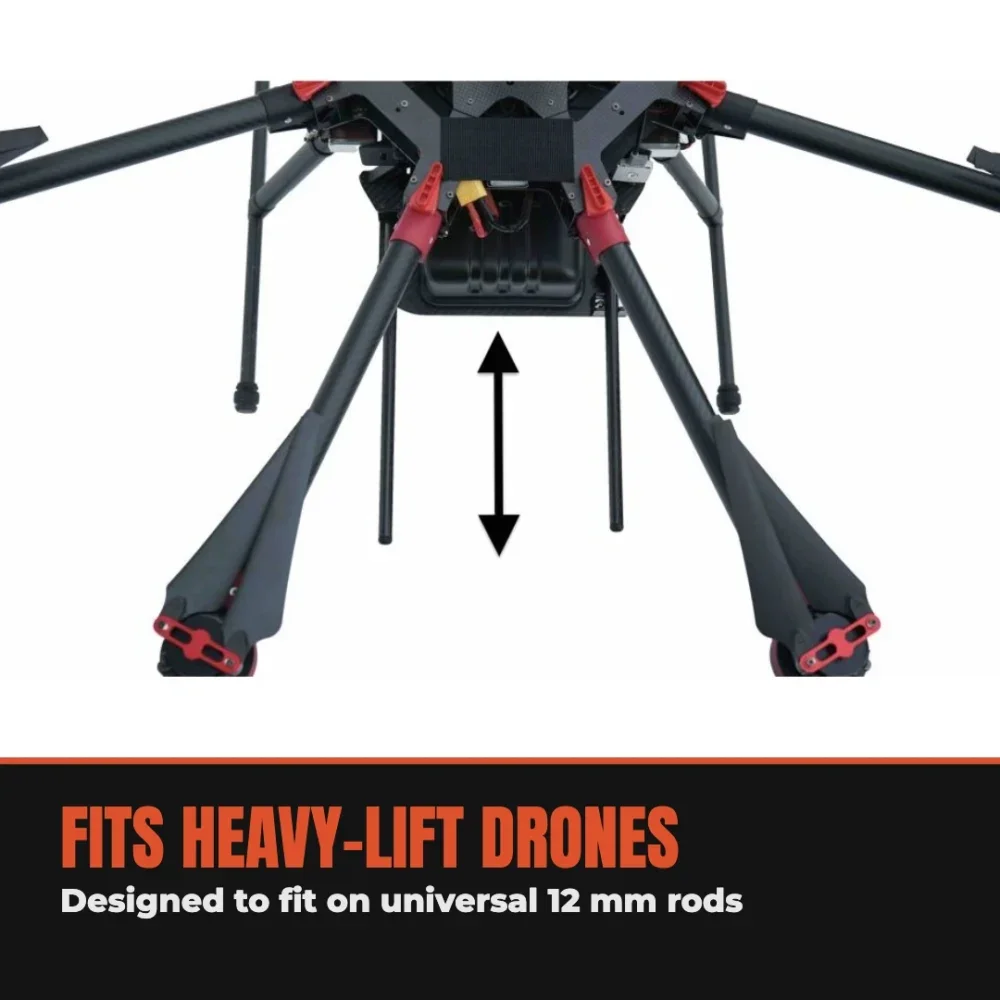

The TF-19 mounts via two 12mm-OD × 500mm rods (included), spaced approximately 195mm apart at the drone interface. This is the same rail standard used by gimbal and camera mounts on most heavy-lift drones, which is why drone-side hardware usually already exists for it. The included sliding rail clamp lets you adjust position along the rods to balance the system over your drone’s center of gravity, and slide the assembly forward for ground refueling without removing it.
Note: drone payload capacity should be 10 lbs or more. The TF-19 is ~5 lbs empty, but a full 1-gallon gasoline tank brings total flight weight close to 10+ lbs.
-
The drone is NOT included. The TF-19 is an attachment only. You’ll need a heavy-lift drone with at least 10 lb payload capacity to operate it (see compatibility above).
Each TF-19 ships with:
TF-19 WASP Gen 2 attachment, fully assembled
Two 12mm-OD × 500mm mounting rods
Instruction and spec sheet
-

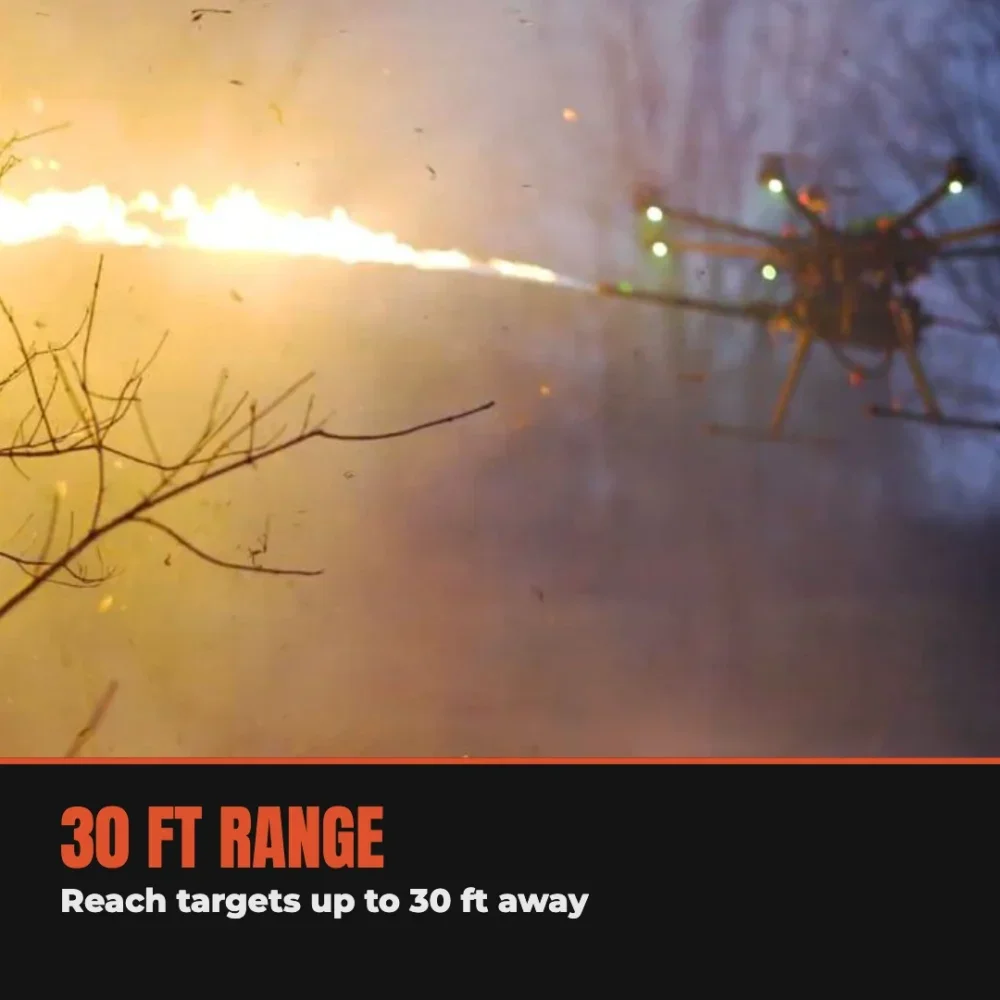

Max range: 30 ft (20% greater than Gen 1)
Fuel capacity: 1 gallon

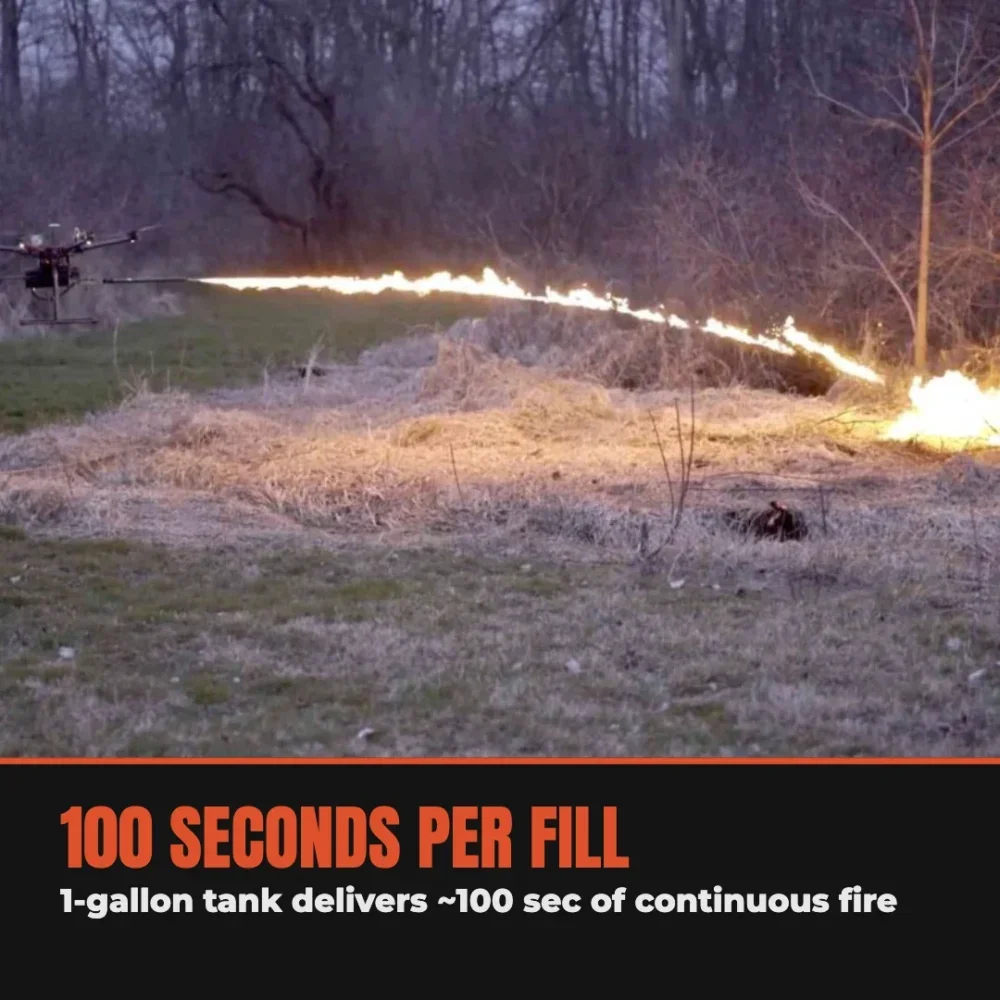

Continuous trigger time: ~100 seconds per fill

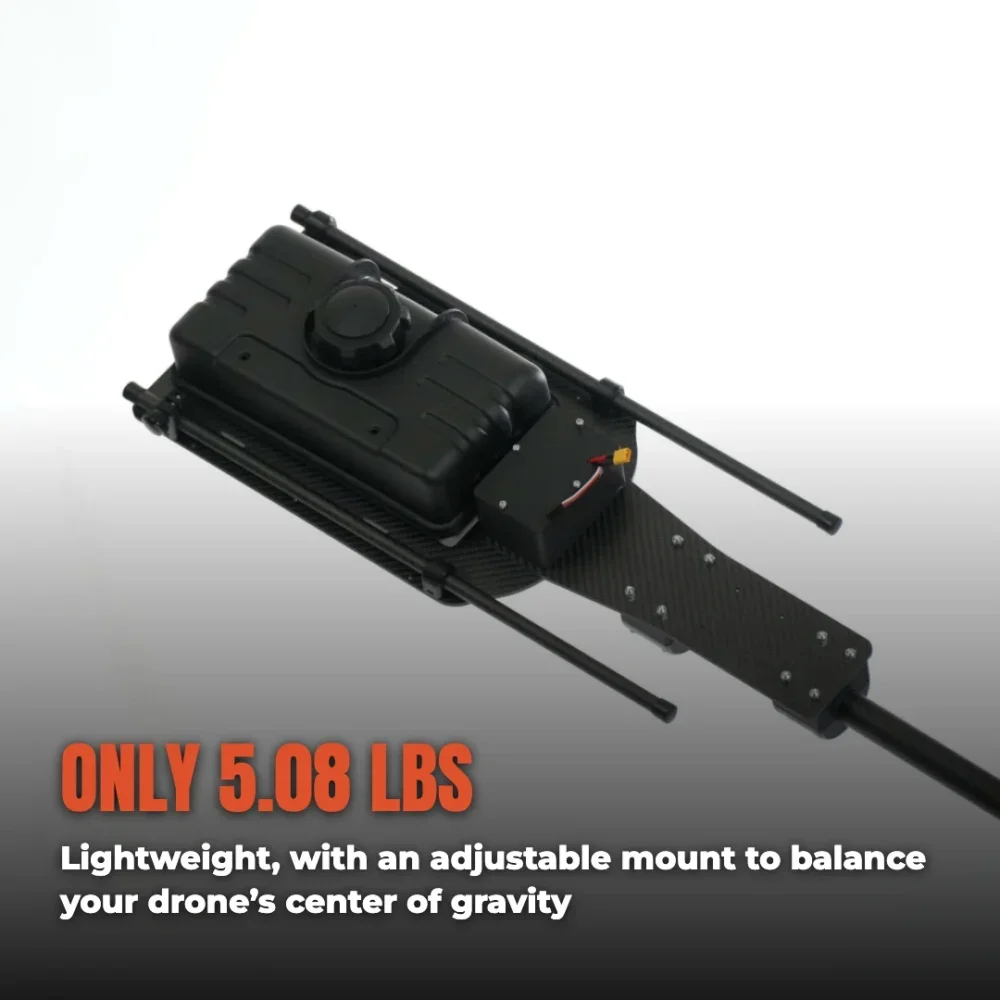

Empty weight: 5.08 lbs (7% lighter than Gen 1)

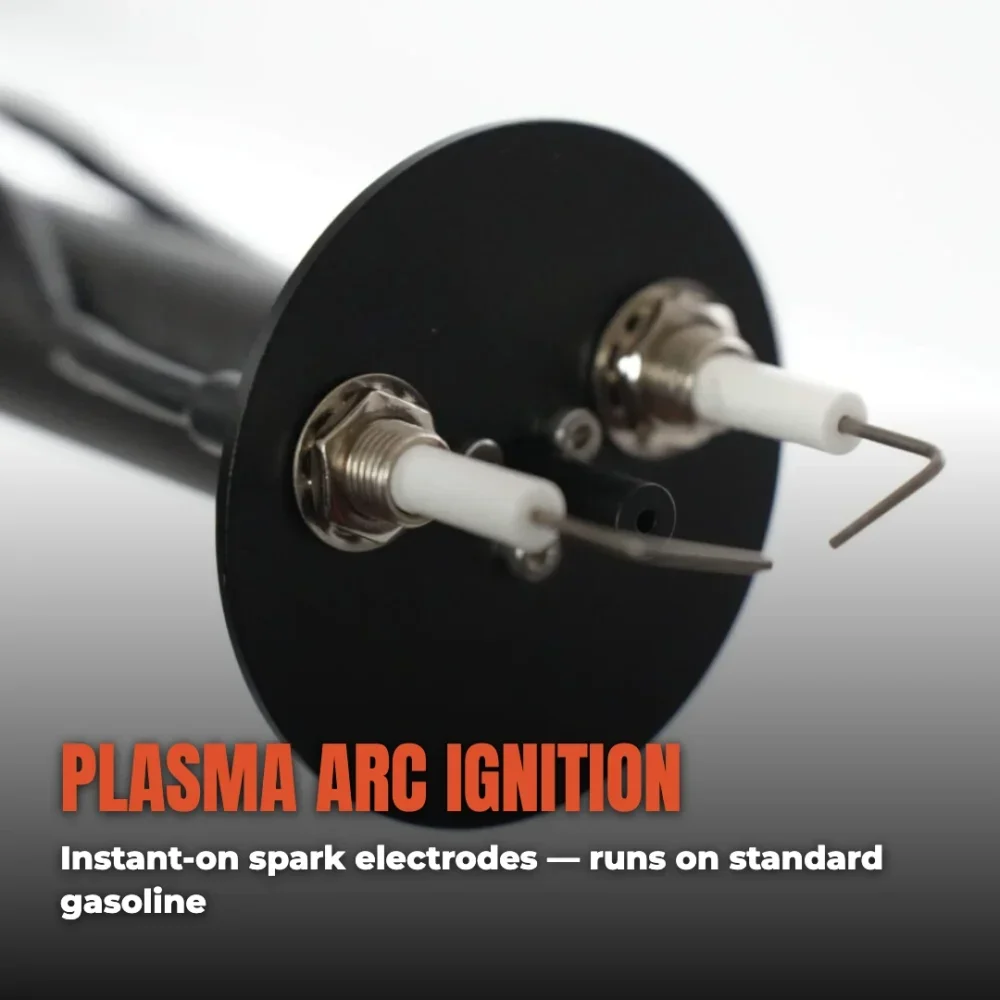

Ignition: Plasma arc — instant-on spark electrodes
Mounting: Two 12mm-OD × 500mm rods, ~195mm spacing
-
The TF-19 runs on standard gasoline — available at any gas station. That’s all most operators need.
Some users mix in up to 50% diesel with the gasoline to slow the burn — diesel is oilier and clings to surfaces better. For prescribed burns, brush clearing, and most agricultural work, gasoline alone is the simplest fuel.
Note: like the ARC, the TF-19 is not napalm-compatible. It uses a fuel-pump-driven delivery system, which can’t run thickened fuels. If napalm capability is important to you, look at our X15 or XL18 — both use a CO2-propellant design and are napalm-compatible.Item description

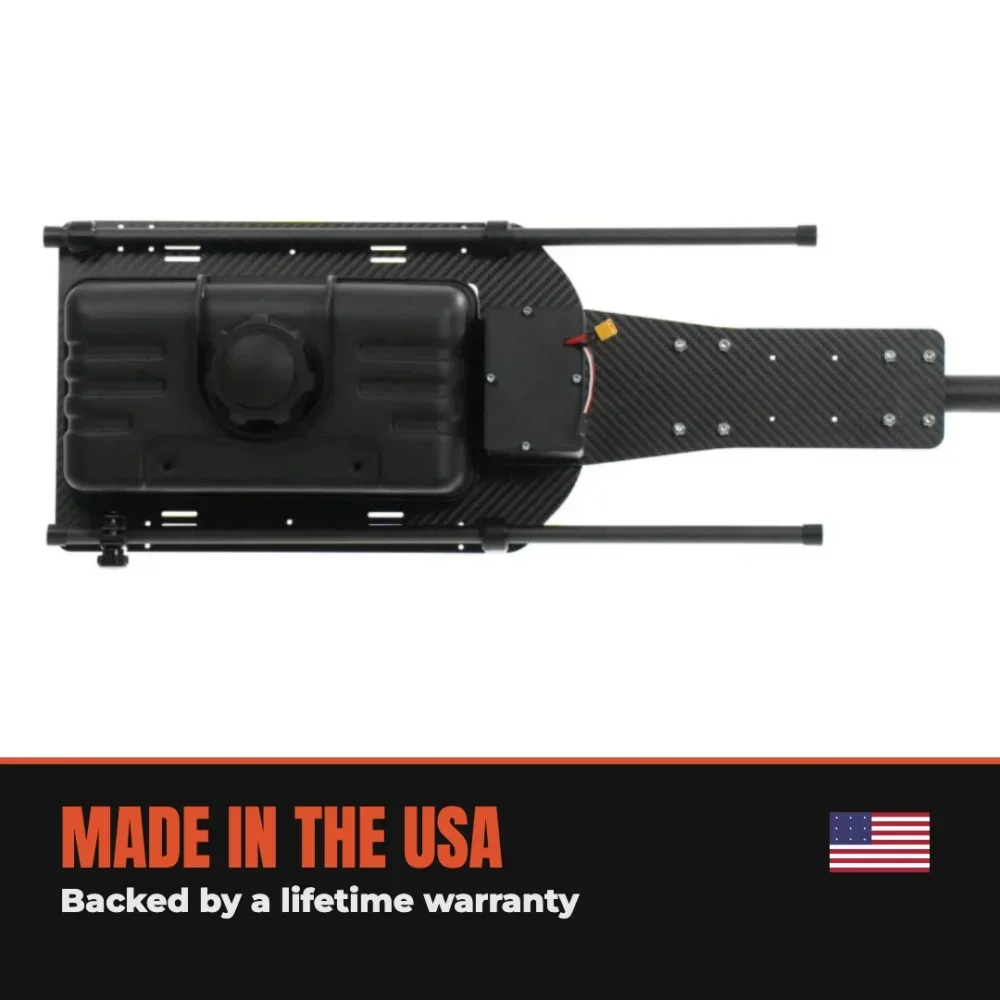

Made in USA · Free Shipping · Lifetime Warranty
Aerial Firepower, Engineered.

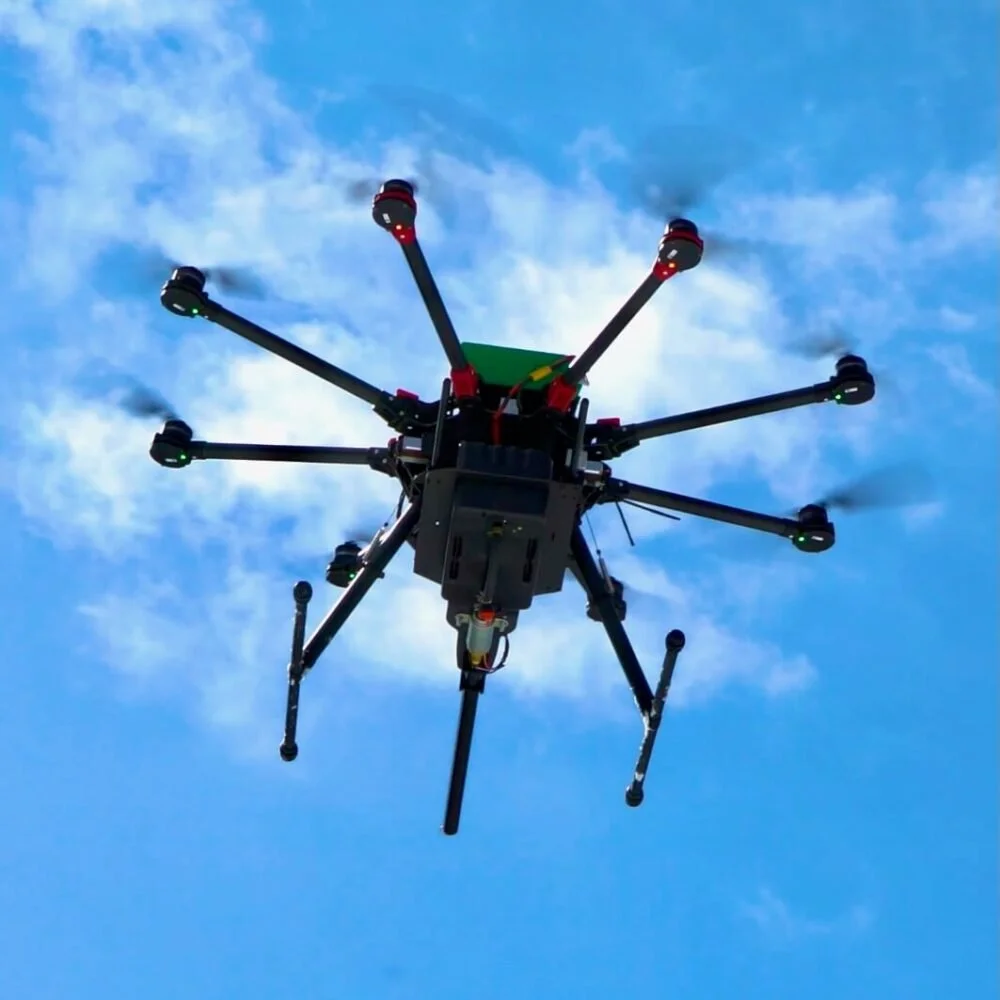

The TF-19 WASP Gen 2 is a drone-mounted flamethrower attachment built for remote ignition of aerial and ground targets. Industrial agriculture, wildland fire management, power-line clearing, pest control, and entertainment SFX all become safer and more efficient when the operator stays on the ground.
30 ft max range (20% greater than Gen 1)
1-gallon fuel capacity · 100 seconds trigger time
5.08 lbs empty — 7% lighter than Gen 1
Slide-mount on 12mm rods · works with most heavy-lift drones
Plasma arc ignition · runs on standard gasoline
Built For The Job
The TF-19 brings precision firepower to jobs that are dangerous, expensive, or simply impossible to do on foot.

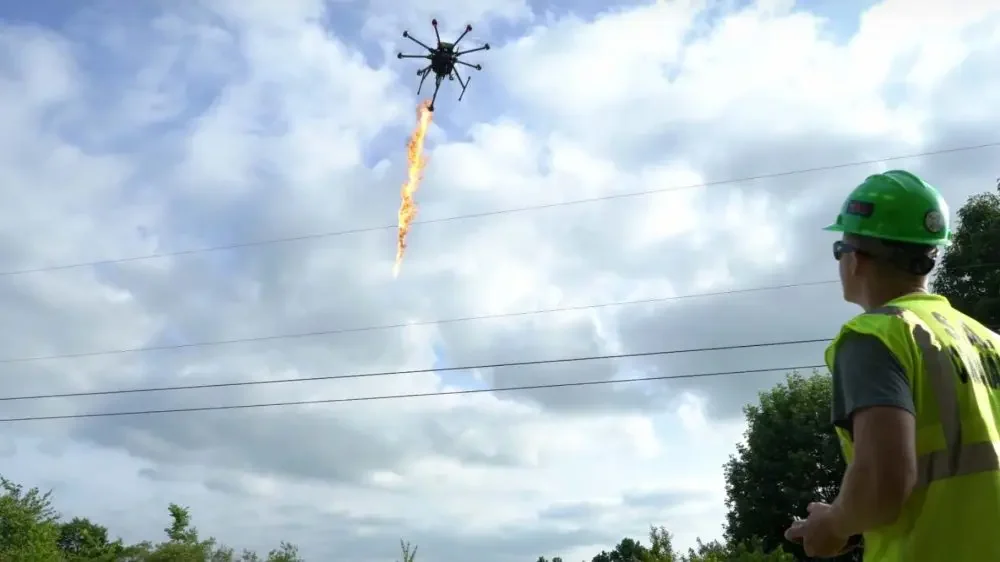

Power Line Clearing
Burn off vegetation and debris from utility lines without crews on the ground.
Pest Management
Eliminate hard-to-reach nests and infestations from the air.
Fire Breaks & Back-Burns
Wildland firefighting crews can ignite remote-controlled burns without entering difficult terrain.
Agricultural Burns
Efficient remote ignition for field management and crop residue clearing.
Fight Fire With Fire
Forest fire management and prevention is both costly and dangerous. Wildland firefighting crews can avoid difficult terrain and adverse conditions while using the TF-19 to ignite remote-controlled burns.
